Product Details
- Size: 80
- Place of Origin: China
- Brand Name: Xinxing Heavy Industry 3611 Wuhan Special Equipmen
- Model Number: WHG5171GXFAP40AT
- Weight: 12000.000 kg

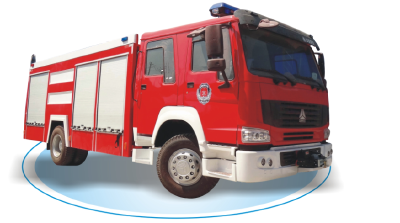

China Supplier Emergency Rescue Howo A type Foam Fire Truck
| 产品名称 Product Name | 重汽A类泡沫消防车 HOWO A type foam fire truck | ||
| 型号 Model | WHG5171GXFAP40AT | ||
| 底盘参数 Chassis parameters | 底盘型号 Chassis Model | ZZ1167M4647D1 | |
| 外形尺寸 Overall dimensions (mm) | 8950*2500*3550 | ||
| 满载总质量Gross weight (kg) | 17000 | ||
| 成员人数 Passengers in cab | 2 4 | ||
| 轴距 Wheelbase | 4600 | ||
| 发动机型号 Engine model | D10.31-40 | ||
| 发动机功率 Engine power(kw) | 228 | ||
| 比功率 Powder density | 13.412 | ||
| 排放标准 Emission standard | 国四 | ||
| 排量 Displacement (ml) | 9726 | ||
| 最高车速 Max speed（km/h） | 80 | ||
| 消防性能 Fire performance | 罐体容积 Tank Capacity | 水 Water(kg) | 3500 |
| A类泡沫 A type Foam(kg) | 200 | ||
| 消防泵 Fire pump | 型号 Model | CB10/60 | |
| 额定流量 Rated flow(L/S) | 60L/S;1.0MPa | ||
| 消防炮 Fire Monitor | 型号 Model | PL48-64YZ | |
| 额定流量 Rated flow(L/S) | 48-64L/S可调(adjustable) | ||
| 射程 Range(m) | 水(Water)≥65，泡沫（Foam)≥55 | ||
| 压缩空气机 Air compressor | 型号 Model | NK100-V001 | |
| 泡沫比例混合器 Foam Proportioner | 型号 Model | DC-AF12/10 | |
