Product Details
- Size: 115
- Place of Origin: China
- Brand Name: Xinxing Heavy Industry 3611 Wuhan Special Equipmen
- Model Number: WHG5301JXFJP18
- Weight: 18000.000 kg

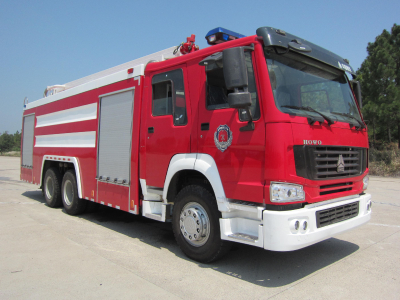

China Supplier HOWO water tower Fire Truck
| 产品名称 Product Name | 重汽举高喷射类消防车 HOWO water tower fire truck | |||
| 型号 Model | WHG5301JXFJP18 | |||
| 底盘参数 Chassis parameters | 底盘型号 Chassis Model | ZZ5347V4647D1 | ||
| 外形尺寸 Overall dimensions (mm) | 12000*2500*3800 | |||
| 满载总质量Gross weight (kg) | 30470 | |||
| 成员人数 Passengers in cab | 2 4 | |||
| 轴距 Wheelbase | 4600 1350 | |||
| 发动机型号 Engine model | D10.38-40 | |||
| 发动机功率 Engine power(kw) | 276 | |||
| 比功率 Powder density | 9.058 | |||
| 排放标准 Emission standard | 国四 | |||
| 排量 Displacement (ml) | 9726 | |||
| 最高车速 Max speed（km/h） | 80 | |||
| 消防性能 Fire performance | 罐体容量 Tank capacity | 水 Water (kg) | 10000 | |
| 泡沫 Foam(kg) | 2000 | |||
| 消防泵 Fire pump | 型号 Model | PSP1500 | CB20.10/30.60-RS | |
| 额定流量 Rated flow (L/S) | 90L/S;1.0MPa | 60L/S;1.0MPa 30L/S;2.0MPa | ||
| 消防炮 Fire monitor | 型号 Model | 阿密龙(Akron)3578 | 威斯特(Wister)PLKD48 | |
| 额定流量 Rated flow (L/S) | 80L/S;0.9MPa | 48L/S | ||
| 额定射程 Range (m) | 水(Water)≥75m 泡沫(Foam)≥70m | 水(Water)≥50m 泡沫(Foam)≥45m | ||
| 最大工作高度（m） | Maximum working height(m) | 18 | ||
| 最大工作幅度（m） | Maximum working range(m) | 7.5 | ||
| 泡沫比例混合器 Foam proportioner | 型号 Model | PH64 | ||
| 混合比例 Mixing ratio | 3％-6％ | |||
