- Size: 67
- Place of Origin: China
- Brand Name: Xinxing Heavy Industry 3611 Wuhan Special Equipmen
- Model Number: WHG5170TXFDF20
- Weight: 10000.000 kg

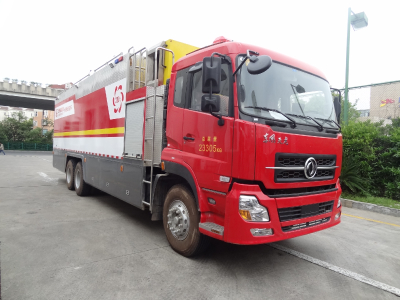

Remote High-Power Water Supply System
The introduction of remote high power water supply system:
2006-2007 Military long-distance fast pipeline system won the second prize of the national scientific and technological progress.
2009-2010 Remote high power water supply system successfully entered the fire market.
2011-2016 Remote high power water supply system covers the major provinces and cities of China.
Tips:
Remote high power water supply system has three series, and it has water resistant function. All series have practical applications.
The series:
For the integrating use, randomly place a pumper fire truck to make a secondary pressurization in the palce that is 2000 meters to 4000 meters away.The delivery distance can reach 6000meters,the terminal flow is 13000L/min.
For parallel use,can form two water pipelines which are in the same direction or different directions.The distance is 3000 meters, the terminal flow is 26000L/min.
The series parameters:
Model | 300 series | 200 series | 150 series |
End water supply flow | 13000L/min | 6600L/min | 3600L/min |
Pipe diameter | 300mm | 200mm | 150mm |
Pump water supply distance | 4000m | 3000m | 3000m |
Pump working pressure | 0.9MPa | 1.6MPa | 1.6MPa |
Vertical and horizontal water distance | 20m/50m | 50m | 50m |
Floating submersible pump QTY | 1 piece | 1 piece | 1 piece |
