High quality factory price Foam liquidremote delivery system
Fire foam liquid remote delivery system
Basic allocation: one unit Foam liquid delivery truck and one unit Foam liquid distribution truck
1.Foam liquid delivery truck
SINOTRUK HOWO Foam Liquid Delivery Truck is mainly composed of automobile chassis, automatic hydraulic power unit, control unit, exhibition arm mechanism, transfer tank and pipe unit, remote self-styled suction device .etc
Fire foam liquid remote delivery system | |
Truck chassis | SINOTRUK HOWO |
Driving type | 6*4 |
The medium | Foam |
The suction flow rate | ≥1100L/min |
Delivery flow | ≥1100L/min |
Delivery distance | ≥500m |
Outlet pressure | ≥0.1MPa |
Working pressure | -10℃~46℃ |

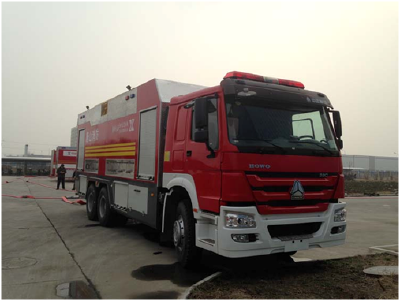

Foam liquid delivery truck photos
2.Foam liquid distribution truck
is composed of automobile chassis, hydraulic power unit, automatic self-control unit, transfer tank and pipe distribution pump unit, remote self-styled suction device, hose winding mechanism and hose.
Foam liquid delivery system | |
Truck chassis | Sinotruk HOWO |
Driving type | 6*4 |
The medium | 6% fluorine protein foam liquid |
The suction flow rate | ≥1100L/min |
Delivery flow rate | ≥1100L/min |
Delivery distance | ≥500m |
Outlet pressure | ≥0.1MPa |
Working temperature | -10℃~46℃ |
Foam liquid distribution truck photos
3.The technological innovation of foam liquid remote delivery system
-The old labour force way wastes time and energy.
For fire safety, water and fire foam are the important resource of putting off petroleum chemical industry fire. According to the statistics of Dagu mountain on July 16 in 2010,it was equipped with 348 units fire equipments, 1 set remote water supply system and 2380 fire soldiers. The water consumption is more than 6000 tons, the foam liquid consumption is more than 1100tons, including more than 400 tons fire-fighting foam liquid consumption of the whole fire assault. The fire soldier’s number of carrying bottled foam liquid almost reach a regiment’s force. Five fire soldiers carried about 20tons foam liquid within 5 hours. So the intensity of labor is very large.
2.The fire scene is full of pipe lines
3. New technology at present
According to current situation of domestic and fire demand, the research of fire foam liquid delivery system is to improve the fire safety emergency rescue capabilities, to consummates the war service security system in fire control field.
The system can provide fire fighting foam liquid to the fire fighting equipment in rapid speed, long distance, continuous and big flow.
The system is mainly used in the fire industry, which is suitable for large oil storage, petrochemical industry, port & warehouse, petrochemical tank area, airport and other important sites.
In accordance with the flow technical requirement of 1100L/min, it must take 165 bottles(33000L) within 30 minutes.
To ensure the uninterrupted liquid supply, the liquid supply point chooses the working place which is 500 meters away from the battle fire trucks. It uses the general transportation vehicle to dispatch bottled foam liquid. It is practical, convenient and fast. It doesn’t affect the action of battle fire trucks. The general transportation vehicles can deliver bottled foam liquid to the fire site rapidly. It can evacuate all empty bottles in the working place.
4.The system operation schematic diagram
Model | 1700 series | 1100 series | 400 series |
Delivery hose | DN150 Polyurethane hose | DN100 Polyurethane hose | DN65 Polyurethane hose |
The suction flow rate | 300mm | 200mm | 150mm |
The delivery rate | 4000m | 3000m | 3000m |
The delivery distance | 0.9MPa | 1.6MPa | 1.6MPa |
Outlet pressure | 20m/50m | 50m | 50m |
Suction pump QTY | 1 piece | 1 piece | 1 piece |
5.Basic allocation: one unit foam liquid delivery truck one unit foam liquid distribution truck
6.The advantage of the new technology
-Long-distance ,mass flow ,continuous foam liquid supply technology. The system adopt the combination of foam liquid transporting truck and distribution truck, originate the technology of rapid concentration, long-distant, mass flow transporting ,continuous distribution of foam liquid to frontline main fire truck, a breakthrough of current insufficient emergency rescue supply to big fire situation, perfecting the fire-logistics-support system.
- Innovative design of wireless remote control of suction device and defoaming technology.innovative design of wireless remote control of suction device, combing auto-control device,greatly reduced the suction volume of the air. effective control the produce of foam while foam liquid suction process. At the same time, design of installation defoaming device make the produced little foam back into liquid. The technology double guarantee the physical and chemical property stability of the foam liquid ,ensuring the effectiveness of the foam liquid after long-distance transporting.
-A concept of mixing of man-machine, energy-saving, environment protection. Mechanical arm device of the transporting truck ,hose winding device of the distribution truck, respectively achieve the rapid operation of remote control of the suction device and motor recovery of hose, remarkably improving the operation efficiency and decreasing labor intensity, reducing the time of extend and fold. In addition ,the Mechanical arm device has been awarded national invention patent, the patent for utility model has been authorized.
